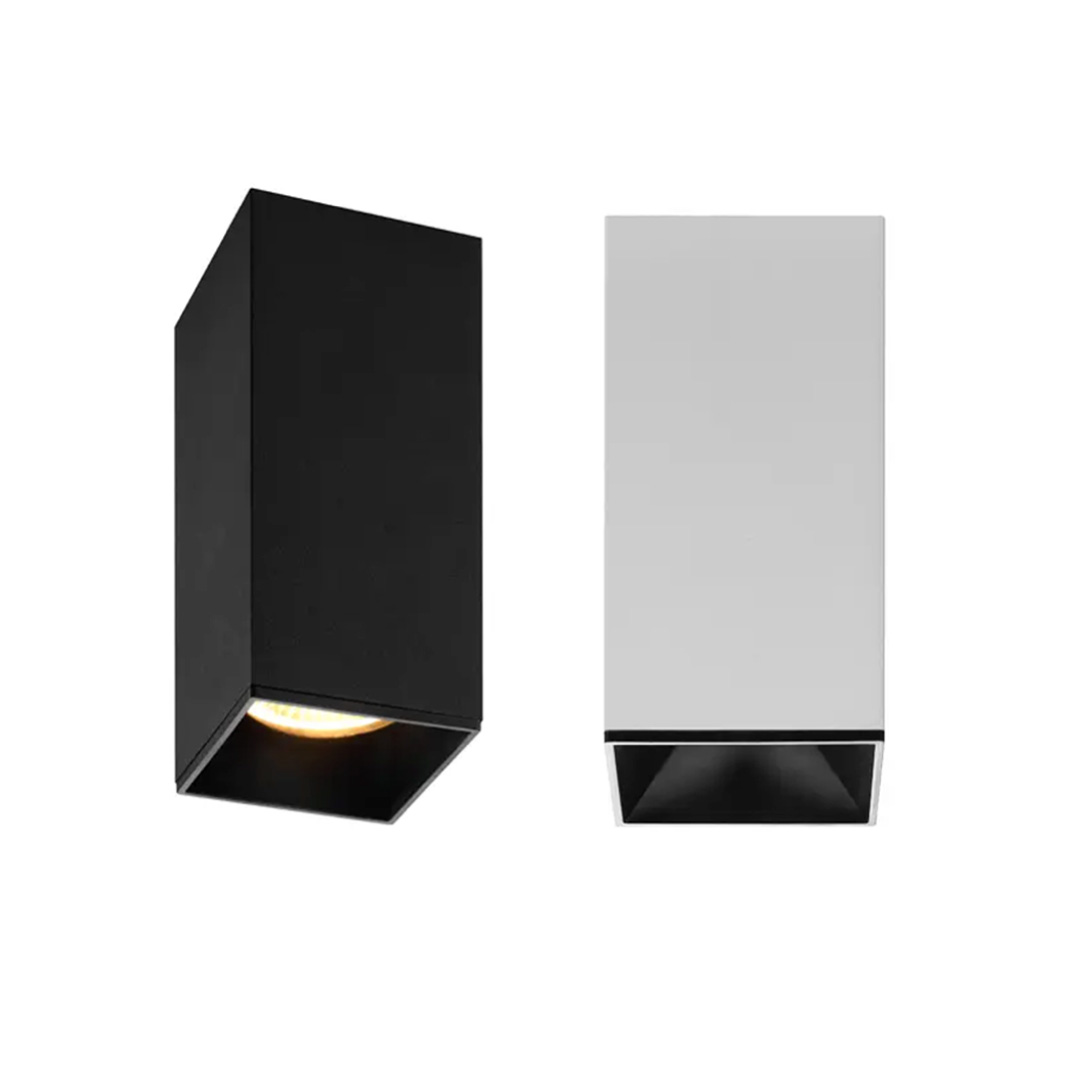

KEA III

Our surface-mounted reflectors are ideal for spaces such as residential, hotels, corridors and lobbies.

High-end LED lighting products provide energy savings of up to 60% compared to conventional solutions.

Specifications

General
Model AC10072
LED COB
Power 10, 12, 15
Operation voltage 100 - 277 VAC
Efficacy 86 lm/W
Power factor >0.9
CRI >90
Angle 15°, 24°, 36°, 60°
Driver Internal
Control options On-Off, Triac
Material Aluminum | PC
Colour Body - White, black
Reflector - black

IP raiting IP20, IP54
Lifespan (L70) 30,000 hours
Warranty 3 years
CCT (K) 2700, 3000, 4000
Dimensions (AxB) 75 x 75 x 132 mm
Dimensions

Downloads

Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI Angle Dimensions File IES
AC10072
100-277 VAC 10
12
15
2700
3000
4000
860
1032
1290
86 >90 15°, 24°, 36°, 60° 75 x 75 x 132 mm
