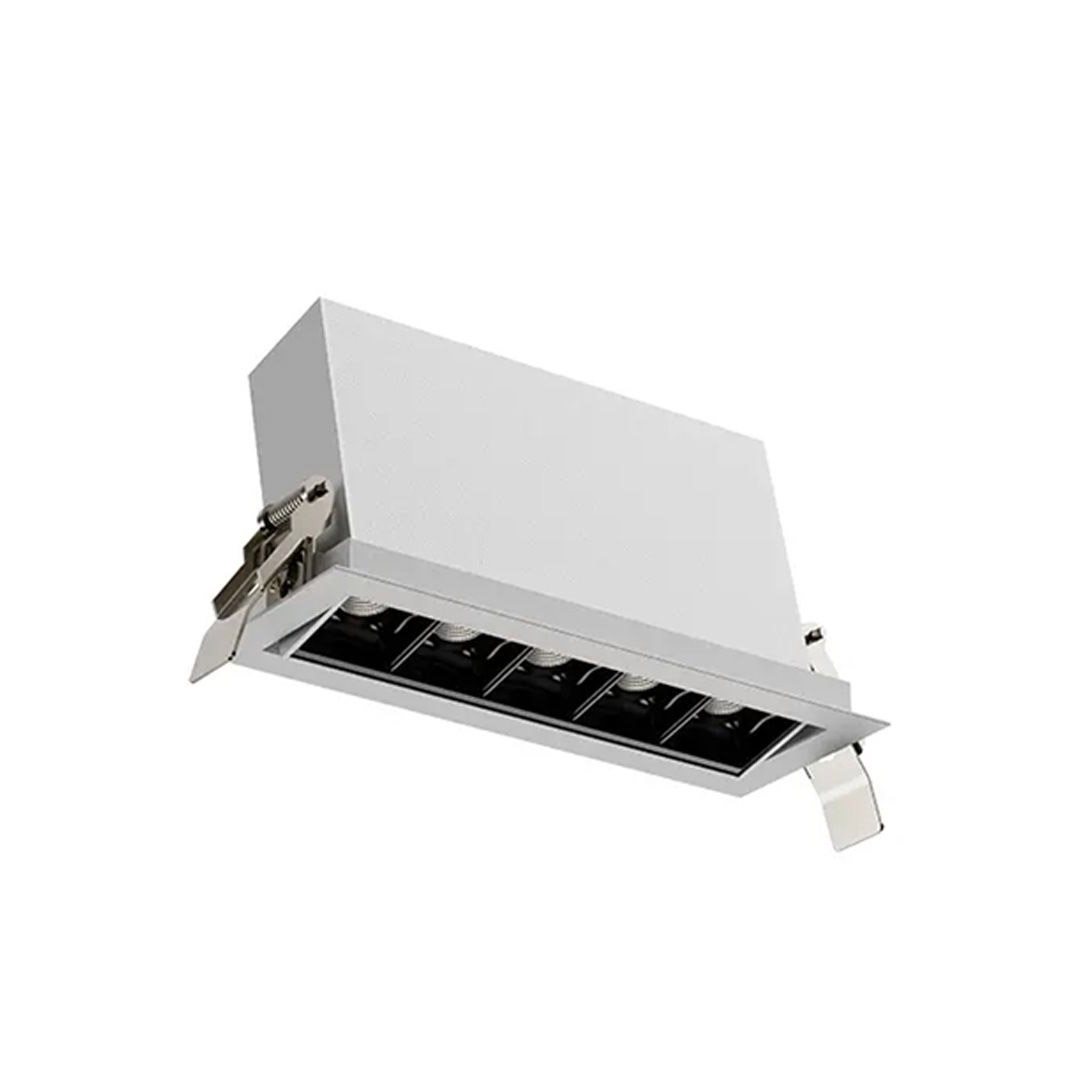

    GRA-AD21120

    Our Downlights are ideal for spaces such as residential, hotels, corridors and lobbies.

    High-end LED lighting products provide energy savings of up to 60% compared to conventional solutions.

    They can quickly and easily be installed, with great flexibility, thanks to the integrated external driver.

    Specifications

    General
    Model AD21120
    LED COB
    Power 10, 15 W
    Operation voltage 100 - 277 VAC
    Efficacy 60 lm/W
    Power factor >0.9
    CRI >90
    Angle 15°, 36°, 48°
    Driver External (included)
    Control options On-Off, Triac
    Material Aluminum | PC
    Colour White, black
    Reflector - Black

    IP raiting IP20
    Lifespan (L70) 30,000 hours
    Warranty 3 years
    CCT (K) 2700, 3000, 4000
    Dimensions (AxB) 60 x 162 x 85 mm
    Dimensions

    Downloads

    Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI Angle Dimensions File IES
    AD21120
    		 100-277 VAC 10
    15    		 2700
    3000
    4000    		 600
    900    		 60 >90 15°, 36°, 48° 162 x 60 x 85 mm

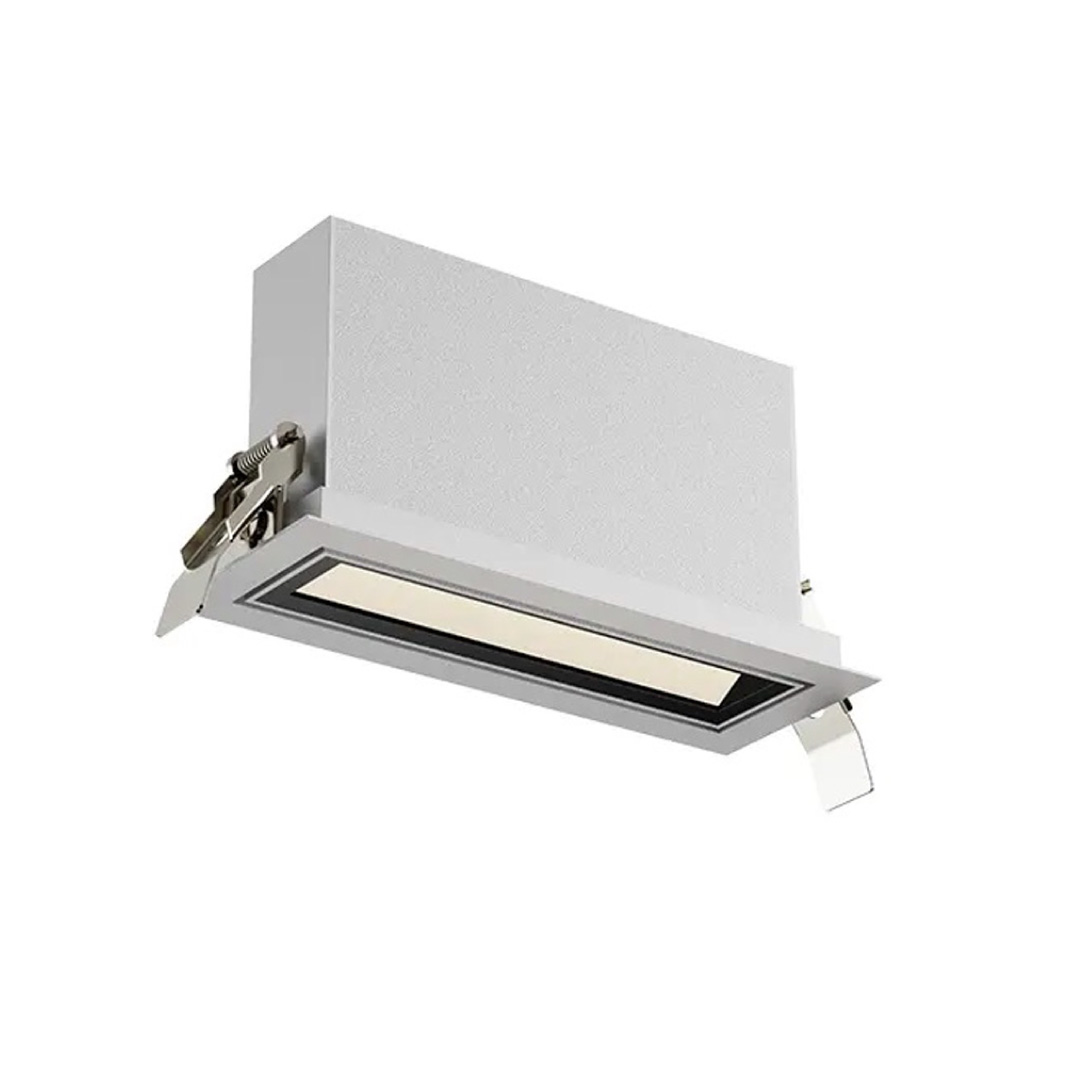

    AD21130
    		 100-277 VAC 25
    30    		 2700
    3000
    4000    		 1582
    1865    		 63.28
    62.16    		 >90 45° 60 x 162 x 85 mm
