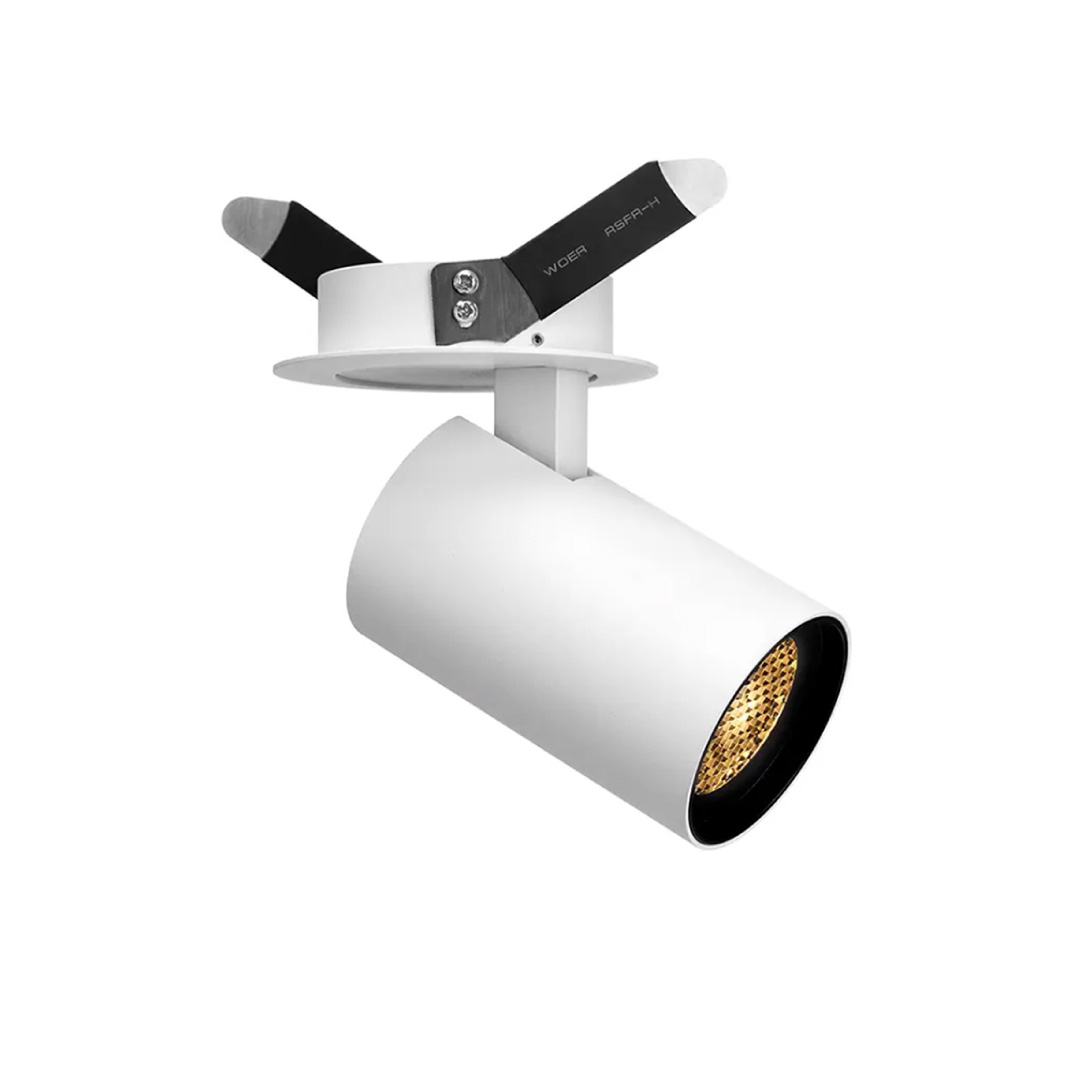

OLYMPIA

Our Reflectors are ideal for spaces such as residential, hotels, corridors and lobbies.

High-end LED lighting products provide energy savings of up to 60% compared to conventional solutions.

They can quickly and easily be installed, with great flexibility, thanks to the integrated external driver.

Specifications

General
Model AD10011
LED COB
Power 8, 12 W
Operation voltage 100 - 277 VAC
Efficacy 83 lm/W
Power factor >0.9
CRI >90
Angle 8°, 15°, 24°, 36°, 60°
Driver External (included)
Control options On-Off, Triac
Material Aluminum | PC
Colour White, black

IP raiting IP20
Lifespan (L70) 30,000 hours
Warranty 3 years
CCT (K) 2700, 3000, 4000
Dimensions (AxB) Ø 55 x 142 mm

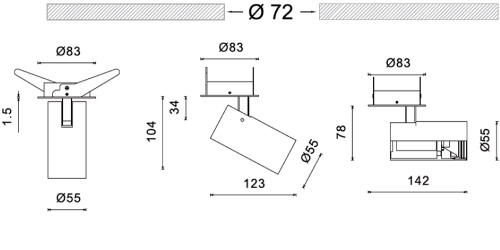

Dimensions

Downloads

Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI Angle Dimensions File IES
AD10011
100-277 VAC 8
12
2700
3000
4000
664
996
83 >90 8°, 15°, 24°, 36°, 60° Ø 55 x 142 mm
