RISE

Our Downlights are ideal for spaces such as residential, hotels, corridors and lobbies.

High-end LED lighting products provide energy savings of up to 60% compared to conventional solutions.

They can quickly and easily be installed, with great flexibility, thanks to the integrated external driver.

Specifications

General

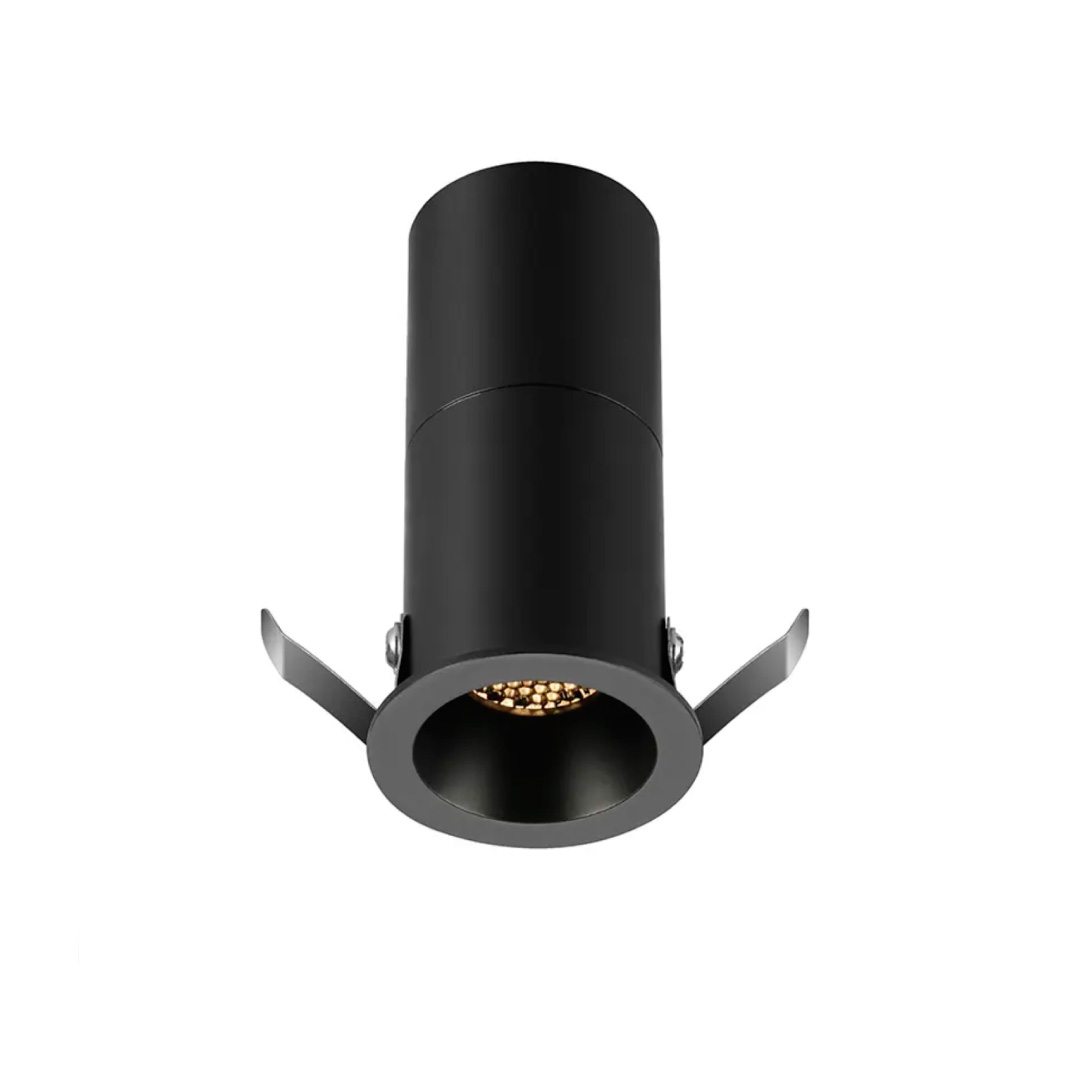

Model AD11180
LED COB
Power 6 W
Operation voltage 100 - 277 VAC
Efficacy 22.5 lm/W
Power factor >0.9
CRI >90
Angle 15°, 24°, 36°
Driver External (included)
Control options On-Off
Material Aluminum | PC
Colour Frame: white, black
Reflector: Black

IP raiting IP20
Lifespan (L70) 30,000 hours
Warranty 3 years
CCT (K) 2700, 3000, 4000

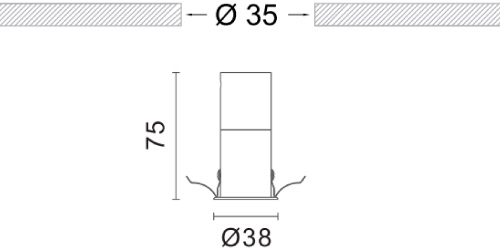

Dimensions (AxB) Ø 38 x 75 mm
Dimensions

Downloads

Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI Angle Dimensions File IES
AD11180
100-277 VAC 6 2700
3000
4000
135 22.5 >90 15°, 24°, 36° Ø 38 x 75 mm

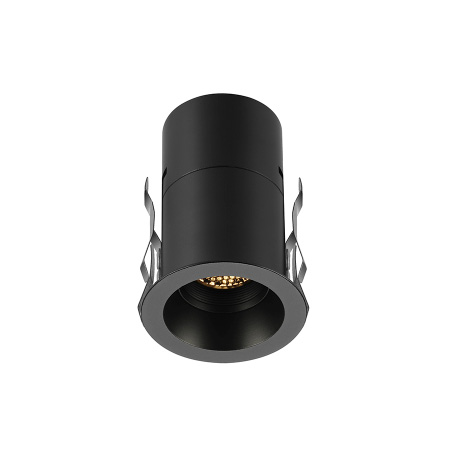

AD11190
100-277 VAC 6
8
10
2700
3000
4000
480
640
800
80 >90 15°, 24°, 36° Ø 53 x 80 mm
