IP20

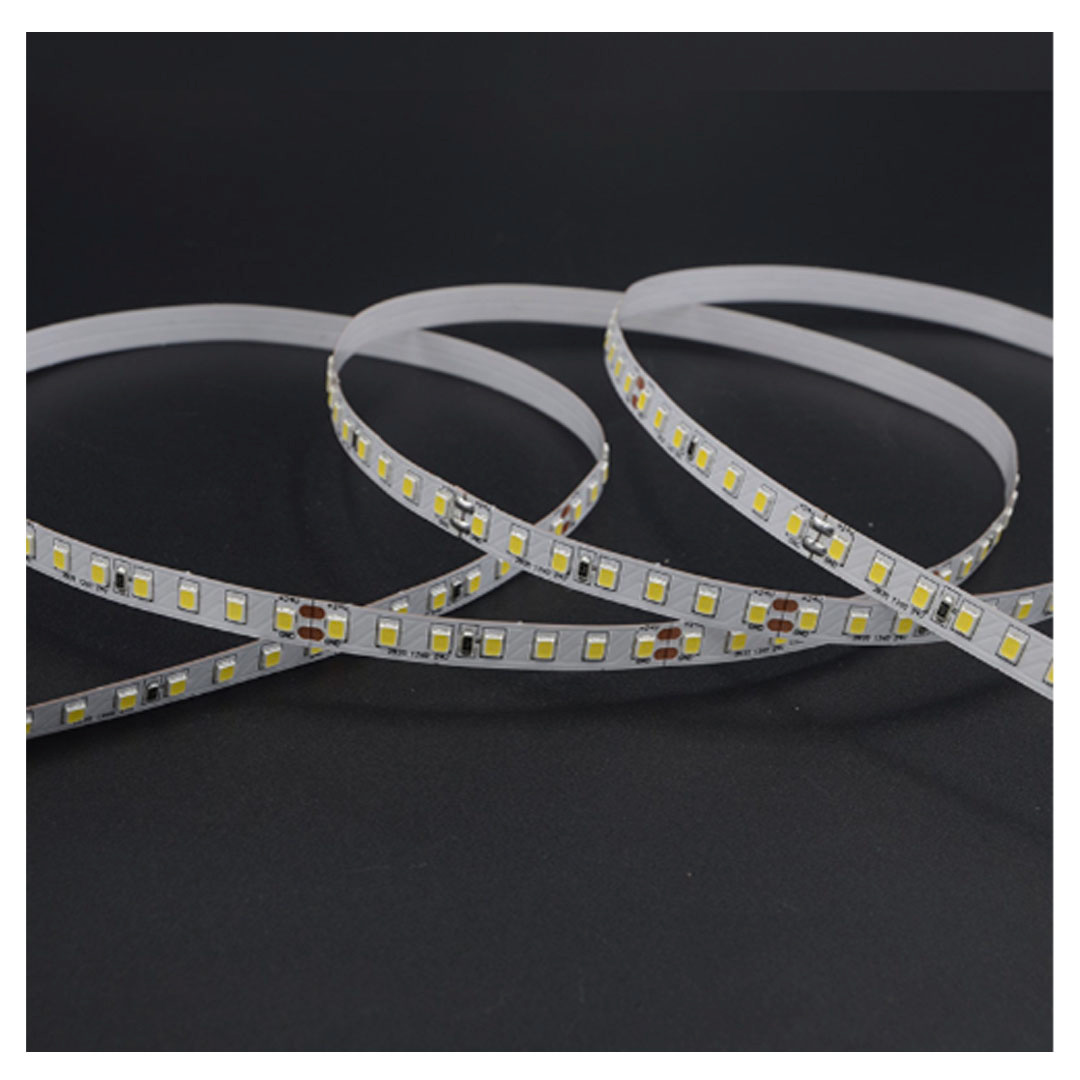

Our LED strips are ideal for indoor lighting.

Available in warm, neutral and cold temperatures.

The product can be cut every 6.25 cm.

Specifications

General
Model STRIPSMD
LED SMD 2835
Power 9.6 W/m
Operation voltage 24 VDC
Efficacy 116.35 lm/W
CRI >95
LED amount 128/m
Dimmable Yes (with appropriate driver)
IP raiting IP20
Cutting unit 6.25 cm

Lifespan (L70) 30,000 hours
Warranty 3 years
CCT (K) 2300, 2700, 3000, 4000, 6000
Width 8 mm
Roll 5 m

Note: The maximum connection of continuous led strip is 10 m.

Dimensions

Downloads

Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI LED amount Cutting unit Dimensions File IES
STRIPSMD
24 VDC 9.6 2300
2700
3000
4000
6000
1117 116.35 >95 128/m 6.25 cm 8 mm
STRIPSMD
24 VDC 9.6 2700
3000
4000
6500
1282
1367
1526
1575
133.54
142.39
158.95
164.06
>90 160/m 5 cm 10 mm
