    GRJ-STRIPRGBW-5050-96L19.2-24IP68-X

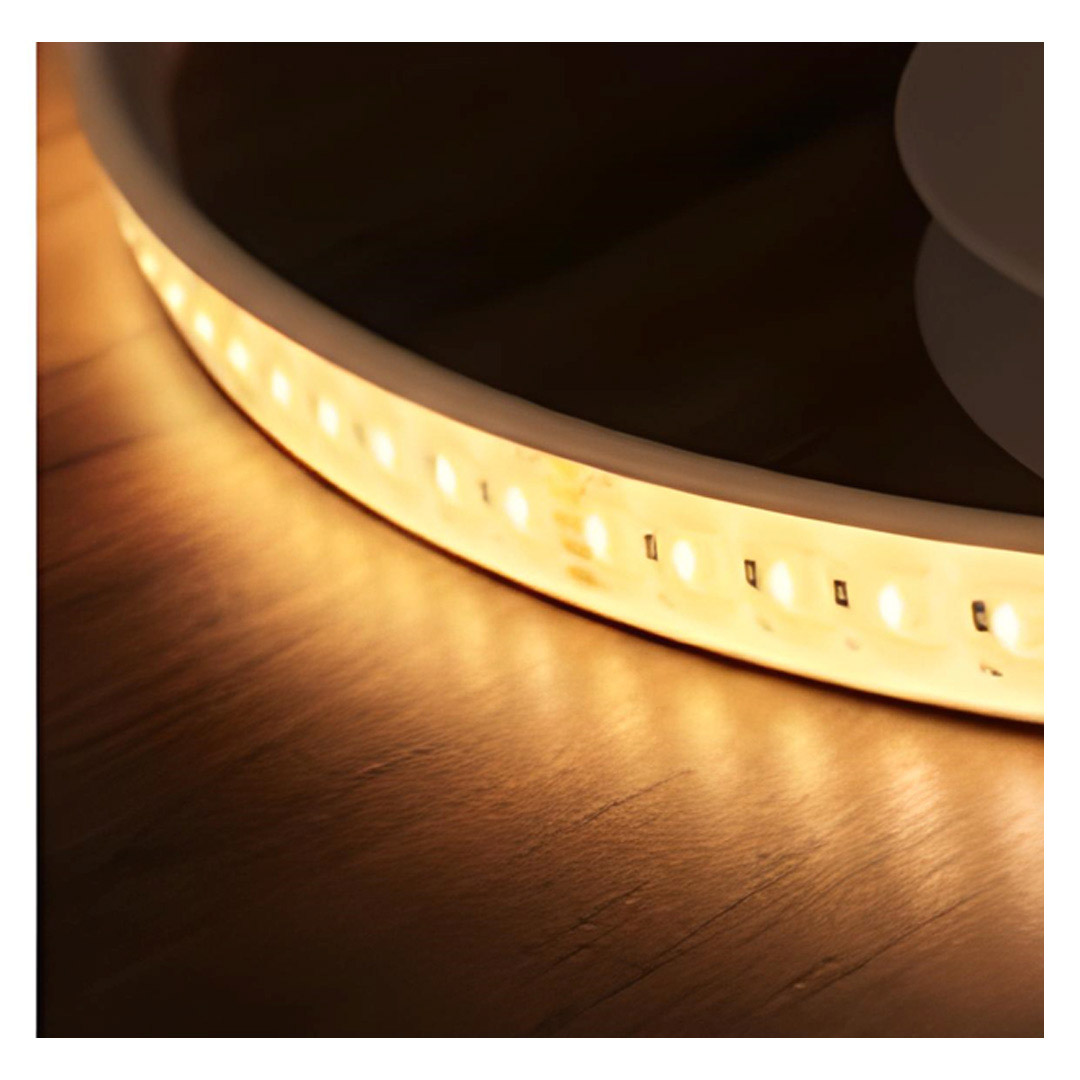

    Our RGBW LED strips (4 in 1) are ideal for use in outdoor spaces and immersion in water.

    The product can be cut every 6.25 cm.

    Specifications

    General
    Model STRIPRGBW
    LED SMD 5050
    Power 19.2 W/m
    Operation voltage 24 VDC
    Efficacy 63 lm/W
    CRI --
    LED amount 96/m
    Dimmable Yes (with appropriate driver)
    IP raiting IP68
    Cutting unit 6.25 cm

    Lifespan (L70) 30,000 hours
    Warranty 3 years
    CCT (K) W32 (3200K), W40 (4000K), W60 (6000K)
    Width 15 mm
    Roll 5 m

    Note: The maximum connection of continuous led strip is 10 m.

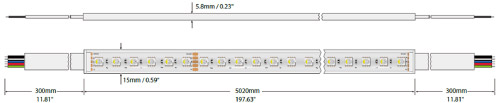

    Dimensions

    Downloads

    Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI LED amount Cutting unit Dimensions File IES
    STRIPRGBW
    		 24 VDC 19.2 W32 (3200K)
    W40 (4000K)
    W60 (6000K)    		 RGBW 1214
    R 133
    G 453
    B 96
    W32 480
    W40 488
    W60 490    		 63.22 -- 96/m 6.25 cm 15 mm
