IP68

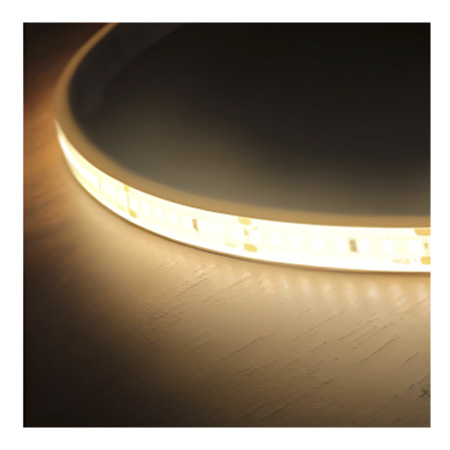

Our LED strips are ideal for indoor lighting.

Available in warm, neutral and cold temperatures.

The product can be cut every 5 cm.

Specifications

General
Model STRIPSMD
LED SMD 2835
Power 9.6 W/m
Operation voltage 24 VDC
Efficacy 147 lm/W
CRI >90
LED amount 160/m
Dimmable Yes (with appropriate driver)
IP raiting IP68
Cutting unit 5 cm

Lifespan (L70) 30,000 hours
Warranty 3 years
CCT (K) 2700, 3000, 4000, 6000
Width 13 mm
Roll 5 m

Note: The maximum connection of continuous led strip is 10 m.

Dimensions

Downloads

Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI LED amount Cutting unit Dimensions File IES
STRIPSMD
24 VDC 9.6 2700
3000
4000
6000
1287
1134
1412
1246
134.06
118.12
147.08
129.79
>90 160/m 5 cm 13 mm
STRIPSMD
24 VDC 14.4 2700
3000
4000
6000
1899
1652
2218
1760
131.87
114.72
154.02
122.22
>90 160/m 5 cm 13 mm
