    GRJ-STRIPNEON-SIDE-15X-24IP68-XC93

    Our Neon LED strips are ideal for use in outdoor spaces and immersion in water.

    Available in warm, neutral and cold temperatures.

    The product can be cut every 4.167 cm.

    Specifications

    General
    Model STRIPNEON
    Power 15 W/m
    Operation voltage 24 VDC
    Efficacy 51 lm/W
    CRI >93
    Dimmable Yes (with appropriate driver)
    IP raiting 68
    IK 08
    Cutting unit 4.167 cm
    Lifespan (L70) 30,000 hours
    Warranty 3 years

    CCT (K) 2700, 3000, 4000, 6000
    Dimensions 12 x 20 mm
    Roll 5 m

    Note: The maximum connection of continuous led neon strip is 10 m.

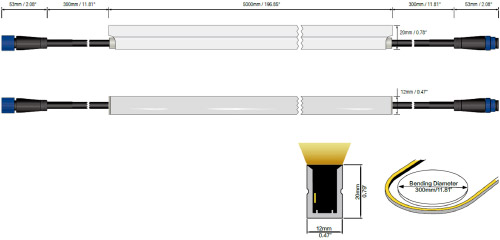

    Dimensions

    Downloads

    Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI Cutting unit Dimensions File IES
    STRIPNEON
    		 24 VDC 15 2700
    3000
    4000
    6000    		 633
    762
    768
    700    		 44.2
    50.8
    51.2
    46.6    		 >93 4.167 cm 12 x 20 mm
    STRIPNEON
    		 24 VDC 15 2700
    3000
    4000
    6000    		 818
    818
    956
    866    		 54.5
    54.5
    63.7
    57.7    		 >93 4.167 cm 16 x 15 mm
