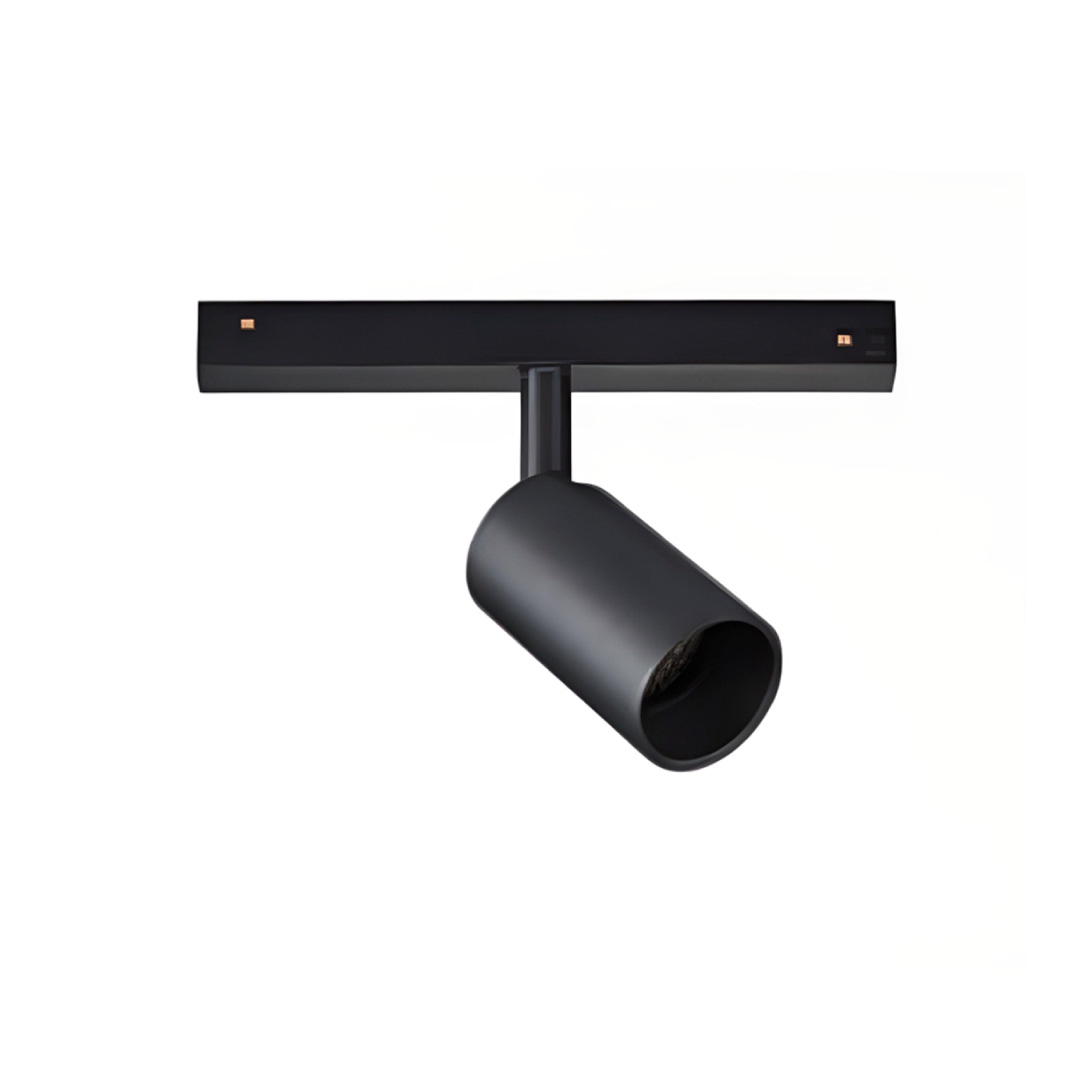

    GRN-GALAXY S26

    Our track system functioned by magnetic fixed. Each track can equip with different connectors, gives the series great flexibility and to adapt to different projects, such as walls, ceilings, or the combination of two.

    Ideal for installation in spaces such as residences, offices, lobbies, restaurants, galleries, among other applications.

    Available in warm temperature.

    Specifications

    General
    Model GALAXY S26
    LED COB
    Power 2 W
    Operation voltage 48 VDC
    Efficacy +105 lm/W
    Power factor >0.9
    CRI >90
    Angle 12°, 17°, 23°
    Control options On-Off, DALI, 1~10V
    Material Aluminum
    Colour Black, white

    IP raiting IP20
    Lifespan (L70) 30,000 hours
    Warranty 3 years
    CCT (K) 2700, 3000
    Dimensions

    Downloads

    Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI Angle Dimensions File IES
    GALAXY S26
    		 48 VDC 2 2700
    3000    		 210
    220    		 +105 >90 12°
    17°
    23°    		 Ø 26 x 43 mm
    GALAXY S40
    		 48 VDC 6.6 2700
    3000    		 640
    668    		 +96 >90 20°
    35°    		 Ø 40 x 70 mm
    GALAXY S60
    		 48 VDC 11 2700
    3000    		 962
    1011    		 +87.45 >90 14°
    28°    		 Ø 60 x 90 mm

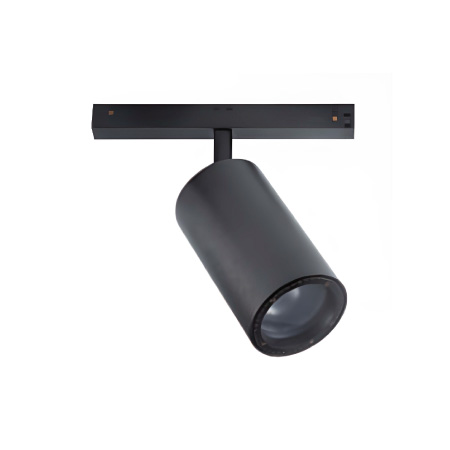

    GALAXY S62 FOCUS
    		 48 VDC 12.9 2700
    3000    		 1151
    1208    		 +89.22 >90 12°~46° Ø 62 x 112 mm

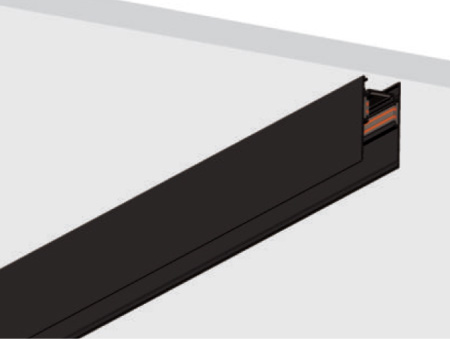

    GALAXY SURFACE TRACK RAIL
    		 48 VDC 1m, 2m

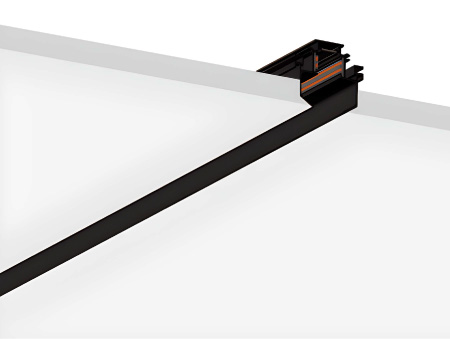

    GALAXY TRIMLESS TRACK RAIL
    		 48 VDC 1m, 2m
