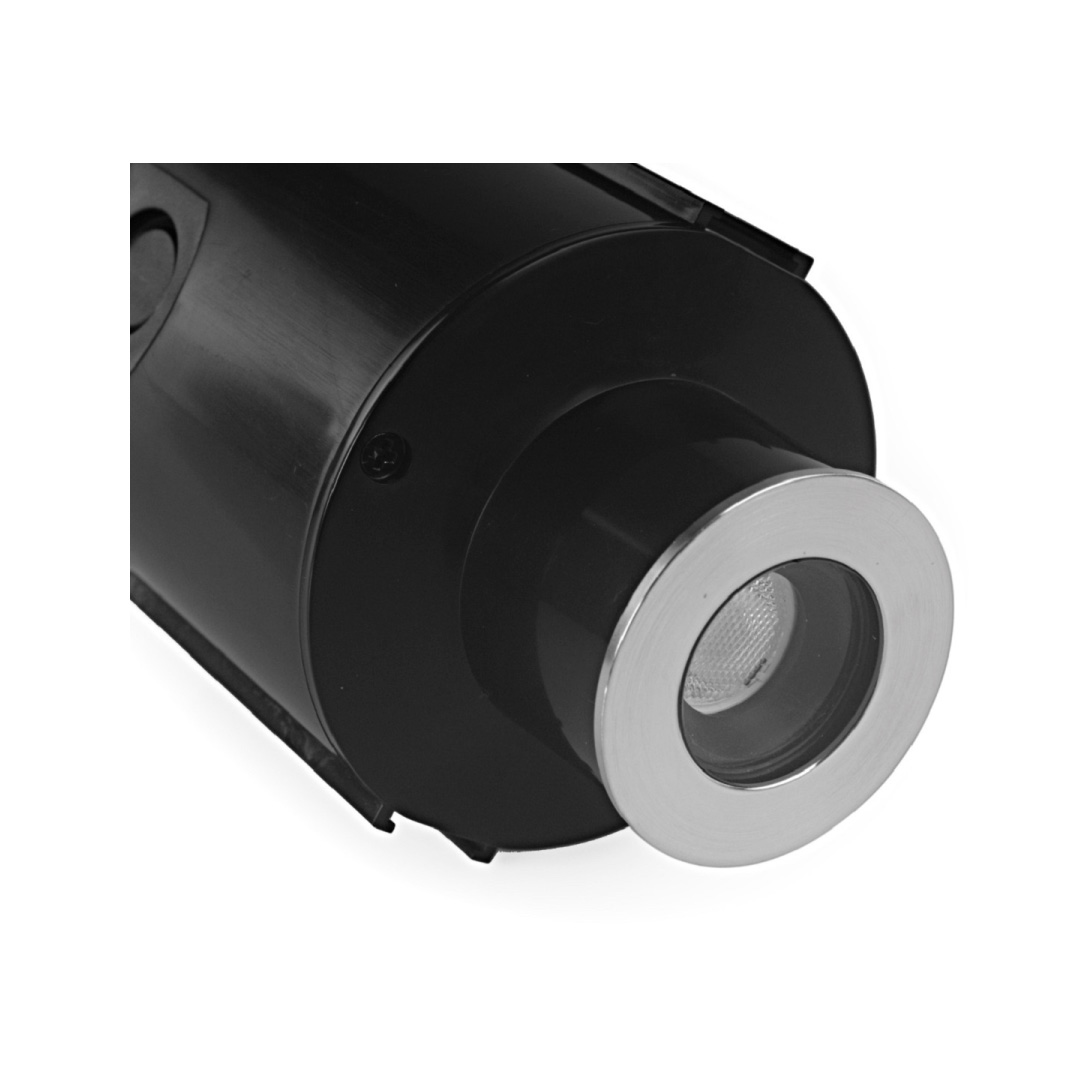

    GRN-MINI STAR RS

    Our recessed floor lights are ideal for outdoor areas such as walkways, ramps, and bridges.

    Housing included.

    Specifications

    General
    Model MINI STAR RS
    LED SMD
    Power 0.6 W
    Operation voltage 24 VDC
    Efficacy +86.66 lm/W
    Power factor >0.9
    CRI >80, >90
    Angle 13°, 18°
    Dimmable No
    Material SUS316L+ALU+GLASS
    Finish SUS316L
    IP raiting IP67

    IK IK05
    Lifespan (L70) 30,000 hours
    Warranty 3 years
    CCT (K) 2700, 3000, 4000
    Dimensions (AxB) Ø 28 x 69 mm

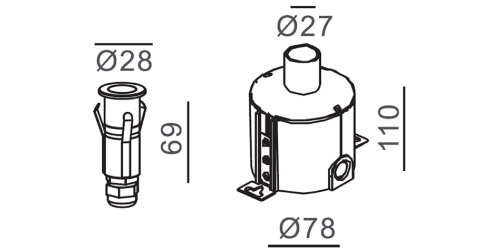

    Dimensions

    Downloads

    Model Voltage (V) Power (W) CCT (K) Lumens (lm) Efficacy (lm/W) CRI Angle Dimensions File IES
    MINI STAR RS
    		 24 VDC 0.6 2700
    3000
    4000    		 71
    52    		 +86.66 >80
    >90    		 13°, 18° Ø 28 x 69 mm
    MINI STAR RM
    		 24 VDC 1.5 2700
    3000
    4000    		 118
    109    		 +72.66 >80
    >90    		 10°, 15°, 20°, 30° Ø 38 x 74 mm
    MINI STAR RL
    		 24 VDC 3.4 2700
    3000
    4000    		 210
    194    		 +57.05 >80
    >90    		 6°, 14°, 27°, 36° o 13°x25° Ø 48 x 69 mm
    MINI STAR R XL
    		 24 VDC 3.7 2700
    3000
    4000    		 399
    360    		 +97.29 >80
    >90    		 15°, 22°, 31° Ø 65 x 73 mm
    MINI STAR R XL
    		 100-240 VAC 3.2 2700
    3000
    4000    		 399
    360    		 +112.5 >80
    >90    		 15°, 22°, 31° Ø 65 x 85 mm
